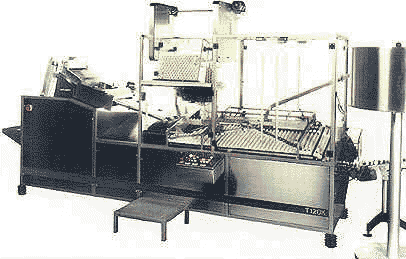

Except for an occasional lubrication of the transport chain the machine requires no maintenance. For repair works all function groups are easily accessible and can if required be removed from the base frame without problems.

The machine is built and designed according to the latest state of art technology and in compliance with the rules of mechanical engineering. All parts in contact with the product are made of physiologically safe material. The equipment complies with the respective safety regulations. By utilizing different format parts, the machine is able to handle products within the following range of dimensions:

         Tablet diameter:    Min. 13 mm    Max. 28 mm
                                         With extra equipment 8 mm to 40 mm,
         Tube diameter:       Min. 16 mm     Max. 34 mm
                                         With extra equipment 10 mm to 55 mm,
         Tablet stack length:                      Max. 200 mm
         Tube length:                                  Max. 220 mm
         Capping diameter:                        Max.   60 mm.

Provided that the tablets are of uniform dimensions and stable in shape, the machine can supply up to 120 filled and capped tubes per minute.
The counting accuracy is ± 0
The maximum output of the machine does not depend on the number of tablets per tube, but on the tablet material and on the tube and capping style.
