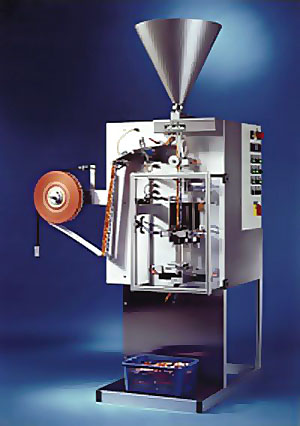

        STICK PACK

        Form-Fill-and Sealing Machines for Stick-Packs

        Articles to be packed: Granuled and powdered products such as sugar, coffee
        Packing Material: Heatsealable films- paper, alu.

        Technical Data:
        Drive: Pneumatic, 6 bar
        Standard power: 230V/400 V, 50 Hz
        Power input: 1 KW
        Standard PLC: SIEMENS S5
        Dosage: Volumetric Dosage
        Machine speed: up to 120 Sticks per minute (depending on nature and quality of products)
        Min/max pouch dimensions: width:: 10 - 24mm,    length: 30 - 125mm
        Longitudinal Seam: Fin Seal
        Options: Print registration, diverting chute including product counter, Product presence control etc
        Machine dimensions: 100 X 90 X 160cm.
        Net standard machine weight: 100 Kg.

STICK PACK is the future orientated application !
