Application:

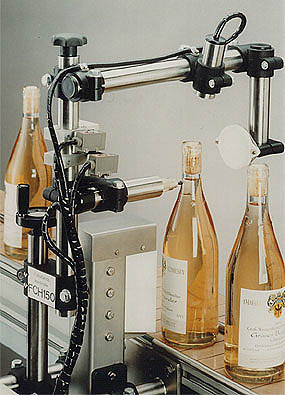

This Fill-Level Inspection System is
designed for automatic fill-level inspection in non-transparent
containers of glass or plastic, The inspection of fillevel occurs via a
special infra-red light barrier, transmitter/receiver, and a special
optic. No special safety regulations are applicable and no use of laser
is required. Because of a special stroked electronical repeater unit (an
easy plug-in module technology), the system is insensitive for foreign
light. This system incorporates high speed inspection technology into a
quality control program, which is cost attractive to the manufacturer
having smaller production line demands, Range of application is the
cosmetic, pharmaceutical and chemical industry.
Method of operation:
Containers to be inspected - non-transparent containers made of glass or
plastic and filled with creamed, pasteurized or hard materials - are
conveyed single file on a conveyor though the inspection station of the
system. The inspection of the under filled containers occurs via an
infrared light barrier within an accuracy of + / - 1 mm, Light my
interruption in case of a correct filled container. Containers lacking
closures are identified by either a proximity switch or an optical
infrared detector. A high speed pneumatic rejecter system with
maintenance unit, or a TSS rejection system, for the production line
removal or inferior containers can also be installed.
Description of the System:
This Fill-Level Inspection System is soundly constructed from stainless
steel. All electronic circuitry has C-Mos technology fixable on easily
exchangeable plug-in modules, and is signaled via light-emitting diodes
fitted on the switch-cabinet face. Suitable, on-demand options for the
FillLevel Inspection System include: 0 high speed pneumatic rejection
system for production line removal of deficient containers. programmable
signal to stop the filling machine in event of a predetermined number of
consecutively faulty containers.
Technical Data:
Speed: up to 50.000 c. p. h.
Power Supply: 110/220/240 V/AC-50/60 Hz -20
Watt Driving Voltage: 12 V/DC internal for electronics. |
