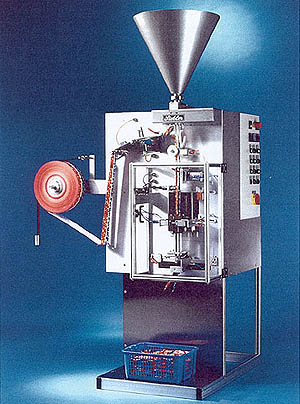

Form-Fill-and Sealing Machines for Stick-Packs

Articles to be packed: Granuled and powdered products such as sugar, coffee
Packing Material: Heatsealable films- paper, alu.

Technical Data:
Drive: Pneumatic, 6 bar
Standard power: 230V/400 V, 50 Hz
Power input: I KW
Standard PLC: SIENENS S5
Dosage: Volumetric Dosage
Machine speed: up to 120 Sticks per minute (depending on the nature and quality of the filling materials)
Min/max pouch dimensions: width:: 10 - 24mm length: 30 - 125mm
Longitudinal Seam: Fin Seal
Options: Print registration, diverting chute including product counter, Product presence control etc
Machine dimensions: 100 X 90 X 160cm.
Net standard machine weight: 100 Kg.
